Rendered ground floor plan of Ruturaj Bhai Bungalow with porch, foyer, drawing room, family living, dining, kitchen, deck and outdoor kitchen

P-01 · Professional · Desiign Code

Ruturaj BhaiBungalow

Rendered plans and interior layout

Office
Desiign Code, Ahmedabad
Type
Residence, interior layout
Year
2026
Role
Drawn by Harit
Scale
N.T.S. · G + 2 floors

Brief

Rendered ground, first and second floor plans. The ground floor runs from the porch and foyer through the drawing room and pooja room to the family living, dining and kitchen, which open onto a timber deck and an outdoor kitchen; the parents’ bedroom, lift and electric room sit alongside.

The first floor holds the master, daughter’s and guest bedrooms, each with a walk-in closet and toilet, around a foyer, a lounge and the double-height space over the entrance. The second floor holds a gym, the son’s bedroom, a lounge, and covered and open terraces.

Floors
Ground + 2
Sheets
Ground floor plan, first floor interior layout, second floor plan
Sheet dates
May 2026

Drawings

Rendered ground floor plan of Ruturaj Bhai Bungalow with porch, foyer, drawing room, family living, dining, kitchen, deck and outdoor kitchen
Ground floor plan of Ruturaj Bhai Bungalow as black line work on tracing paper
DrawingRender
Ground floor plan — drag to move between line drawing and render

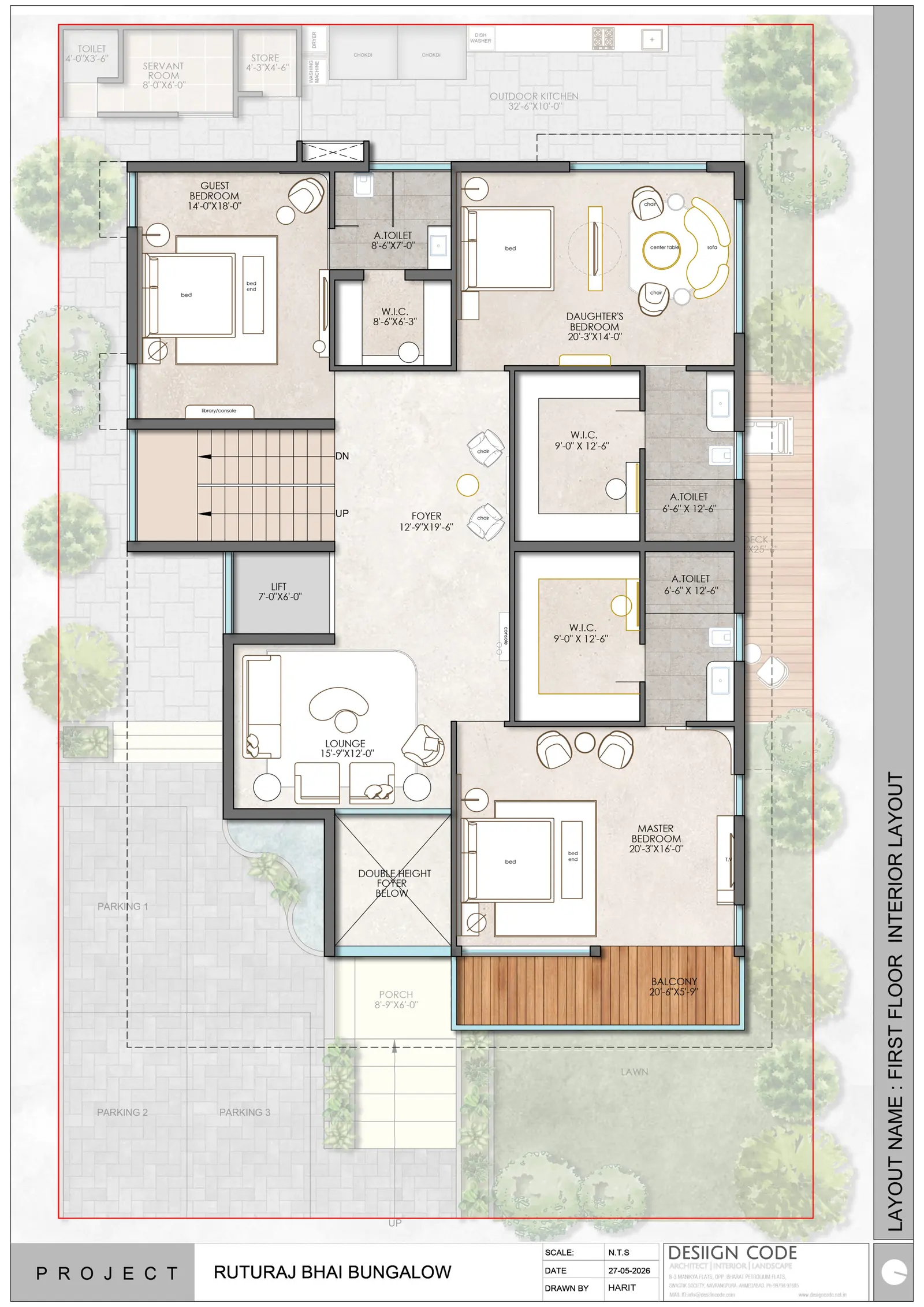

Rendered first floor interior layout with master, daughter's and guest bedrooms, lounge, foyer and balcony

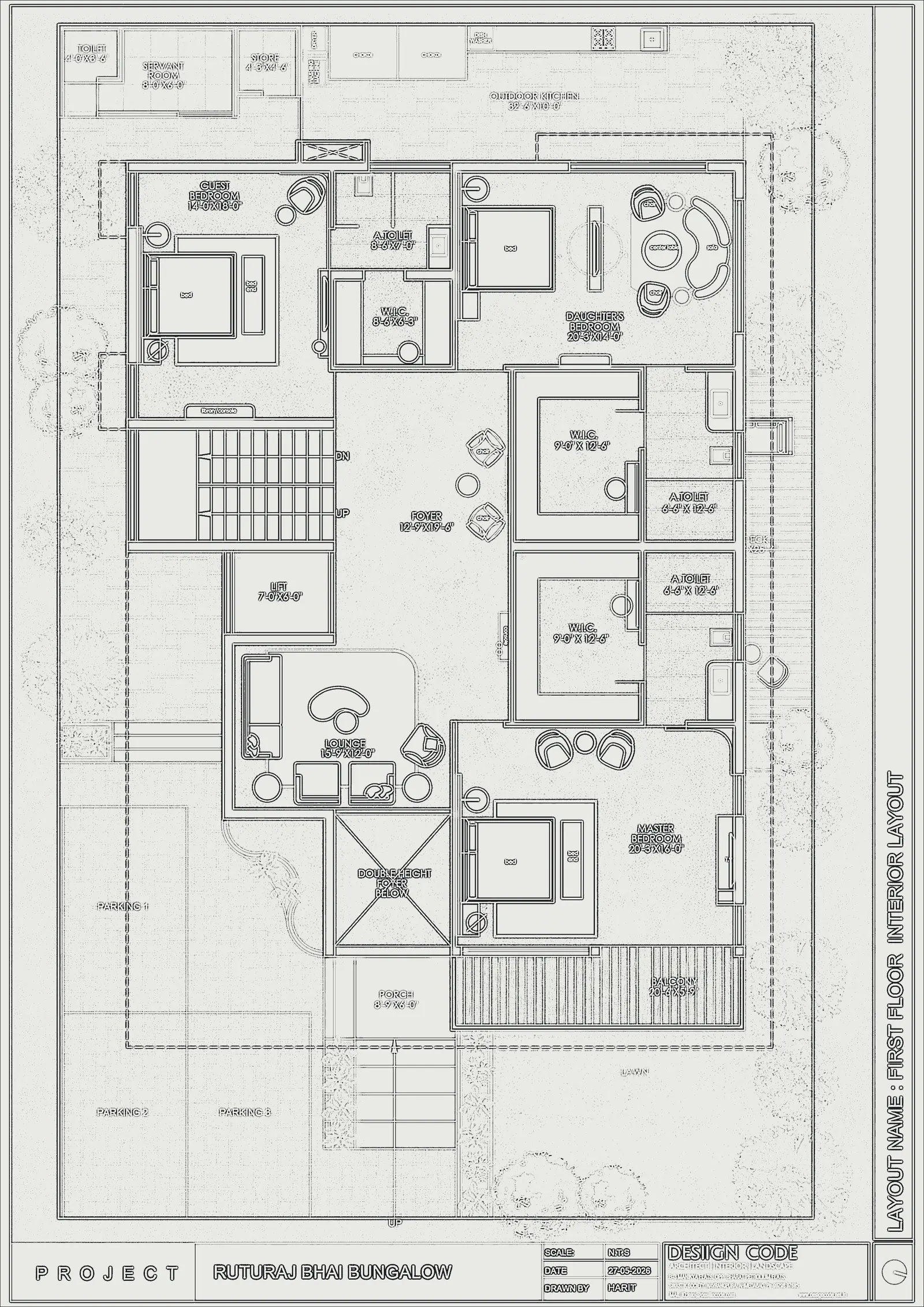

First floor interior layout as line work
DrawingRender
First floor interior layout

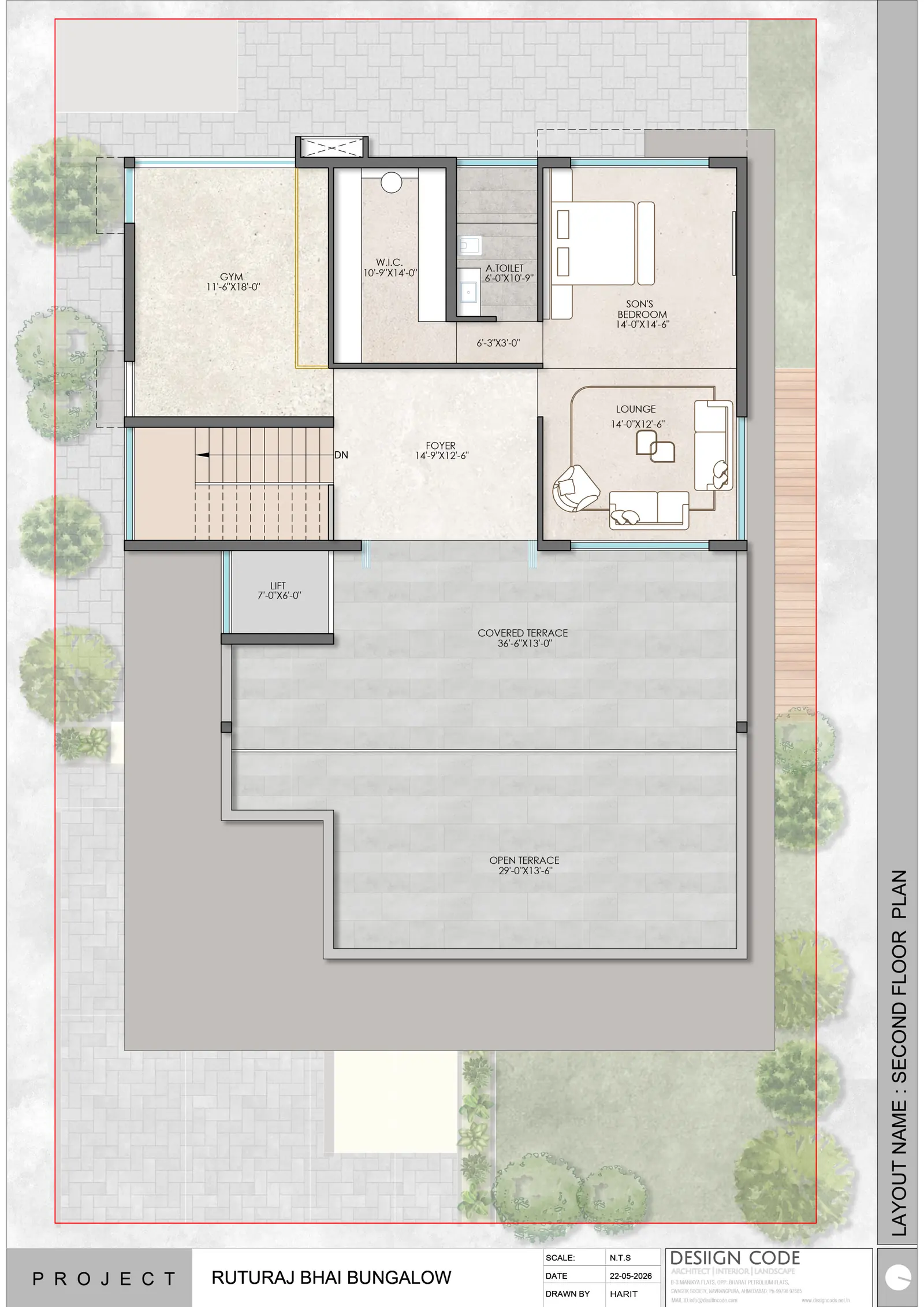

Rendered second floor plan with gym, son's bedroom, lounge and covered and open terraces

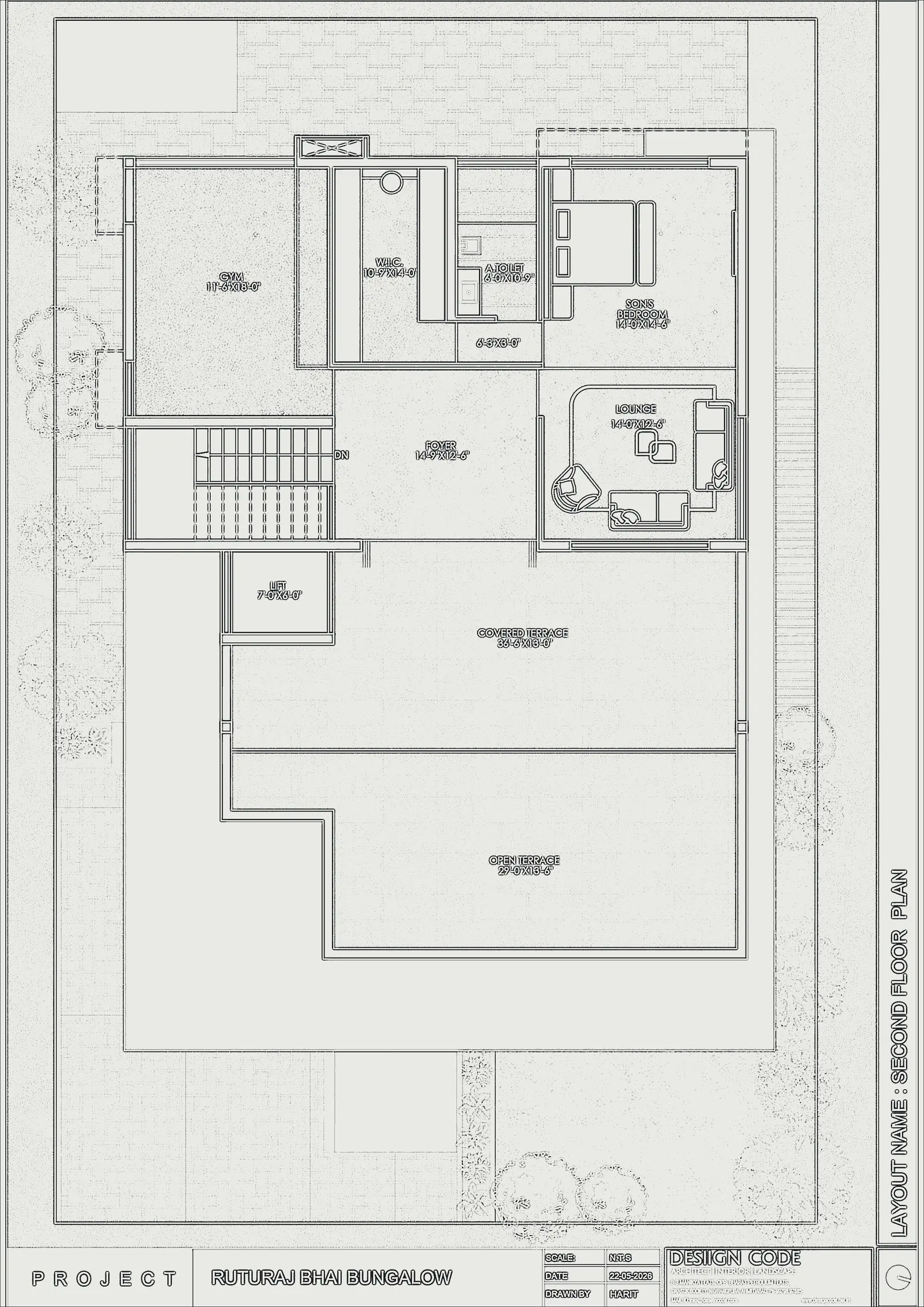

Second floor plan as line work
DrawingRender
Second floor plan
