P-02 · Professional · Desiign Code

RudvedaAalandi

Row housing — a full working-drawing set

Office: Desiign Code, Ahmedabad
Type: Row housing, 69 units
Year: 2025–26
Role: Working drawings, drawn by Harit
Scale: N.T.S.

Brief

The strongest proof of my working-drawing ability: a full set taken from the site plan down to toilet details, for 69 row houses in two types — Type A 3BHK and Type B 4BHK.

It covers the site plan with a senior citizens’ park, kids’ play area and clubhouse; ground, first and terrace floor working plans with an opening schedule; front and back elevations; sections 01 to 05; toilet details with plumbing and electrical layouts; and front gate and security cabin details.

Units: 69 — Type A 3BHK, Type B 4BHK
Roads: 22′-0″ internal roads, 32′-0″ spine
Sheet dates: Dec 2025 – Jul 2026
Set: Plans, elevations, sections 01–05, services, site details

The set, in order

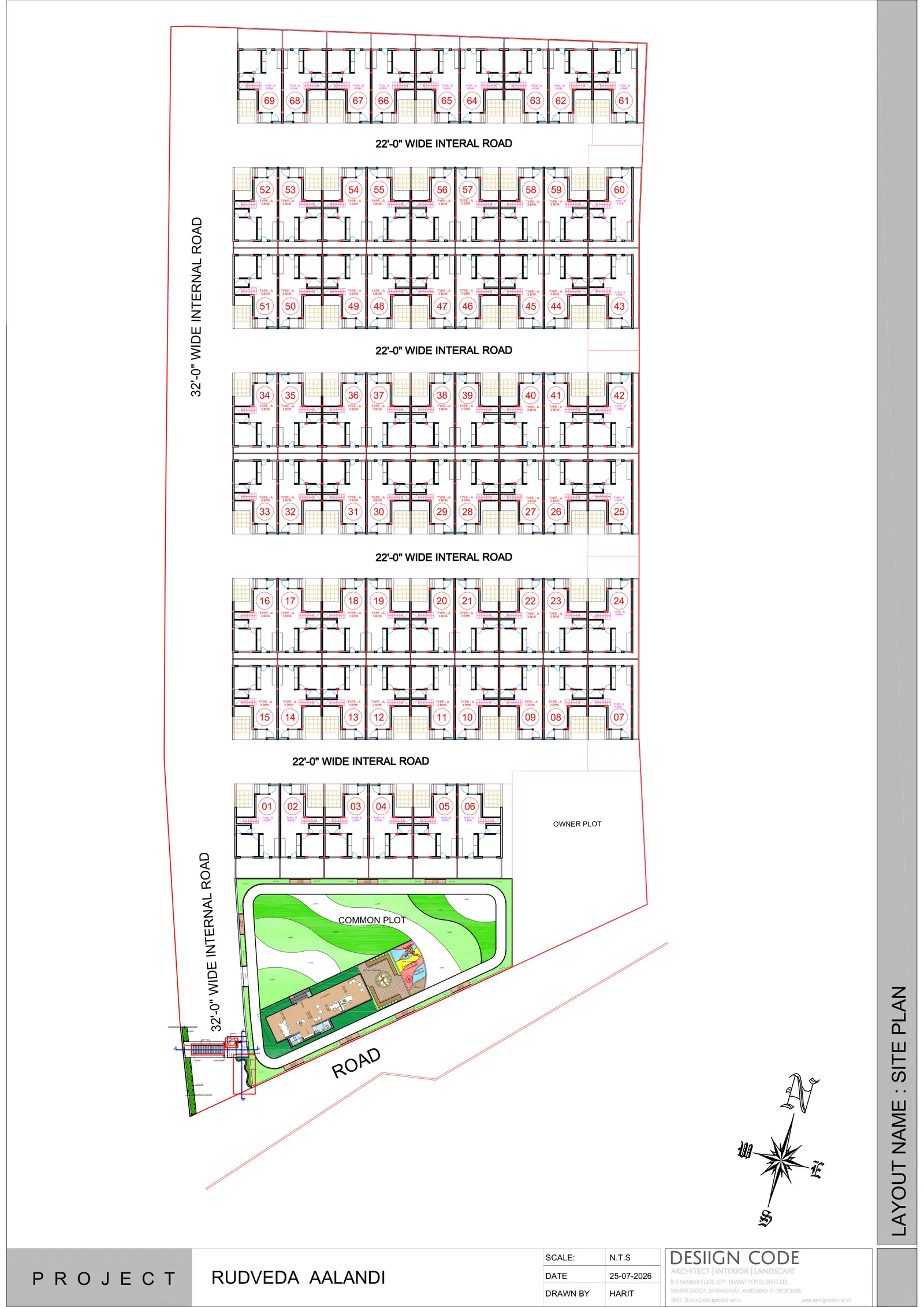

Site plan

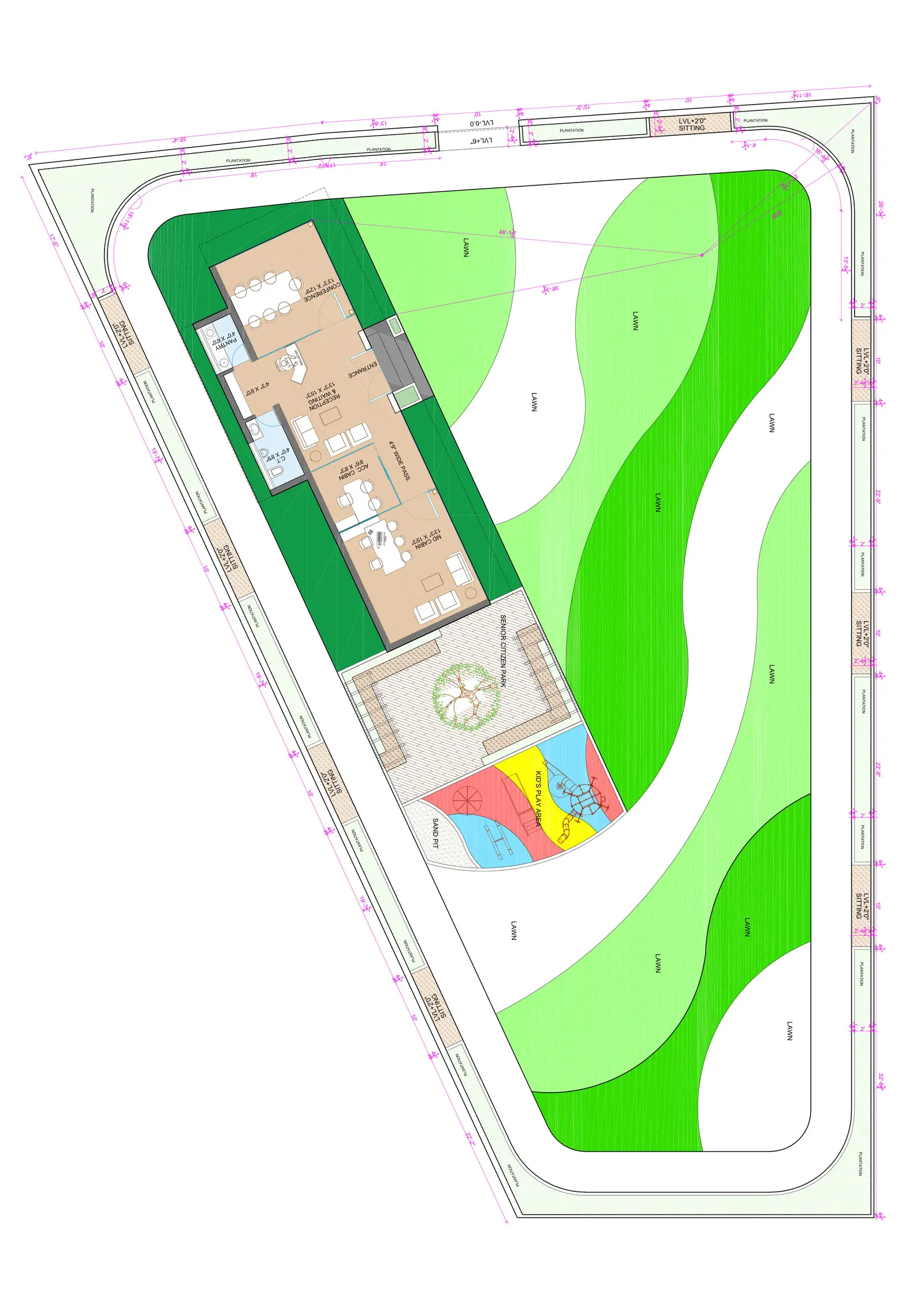

Sixty-nine row houses along 22′-0″ internal roads, with a common plot and amenity block at the entrance.

Site plan
Working plans

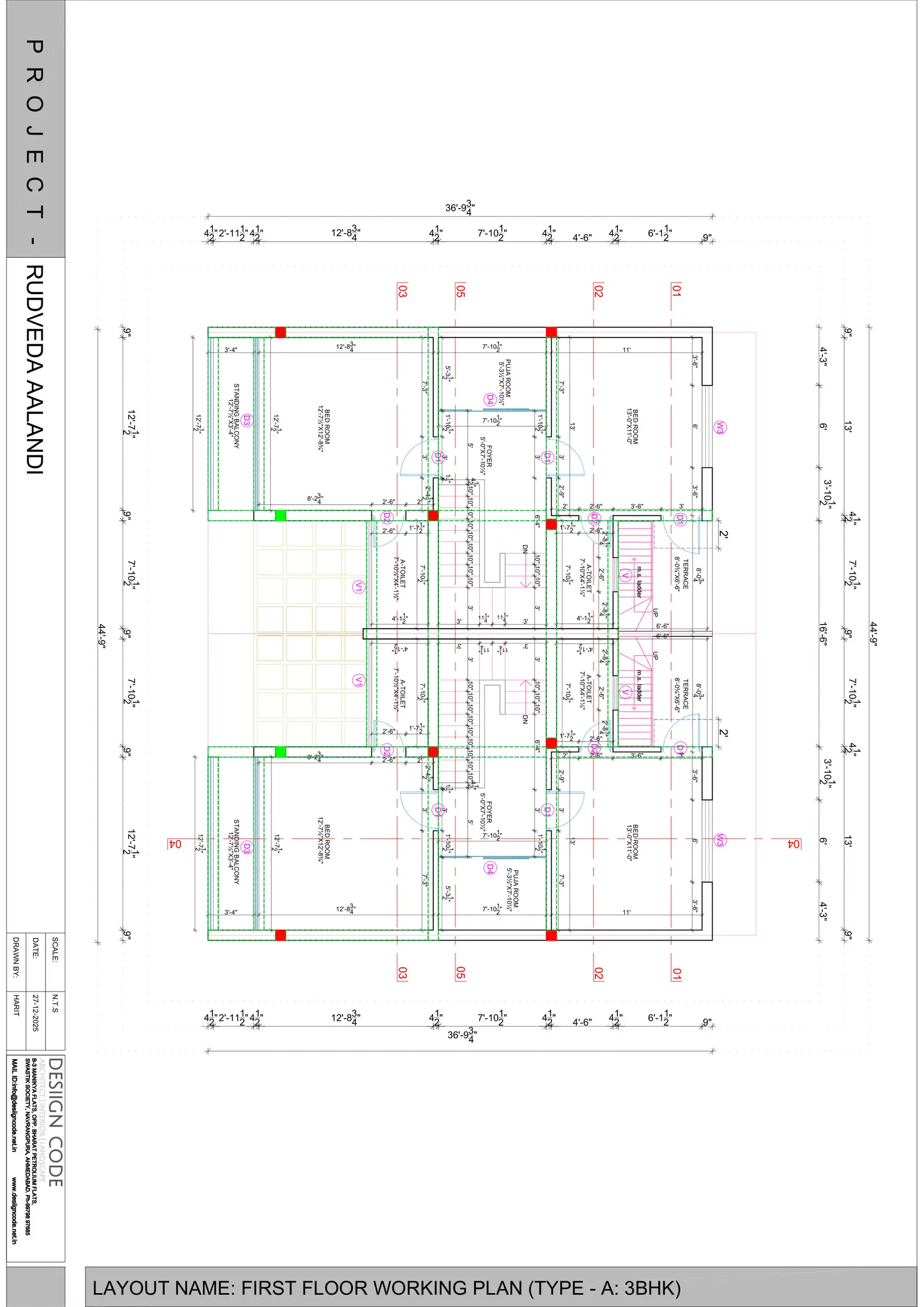

Ground, first and terrace floor working plans for Type A, fully dimensioned, with column positions and an opening schedule.

Ground floor working plan · Type A 3BHK
Elevations and sections

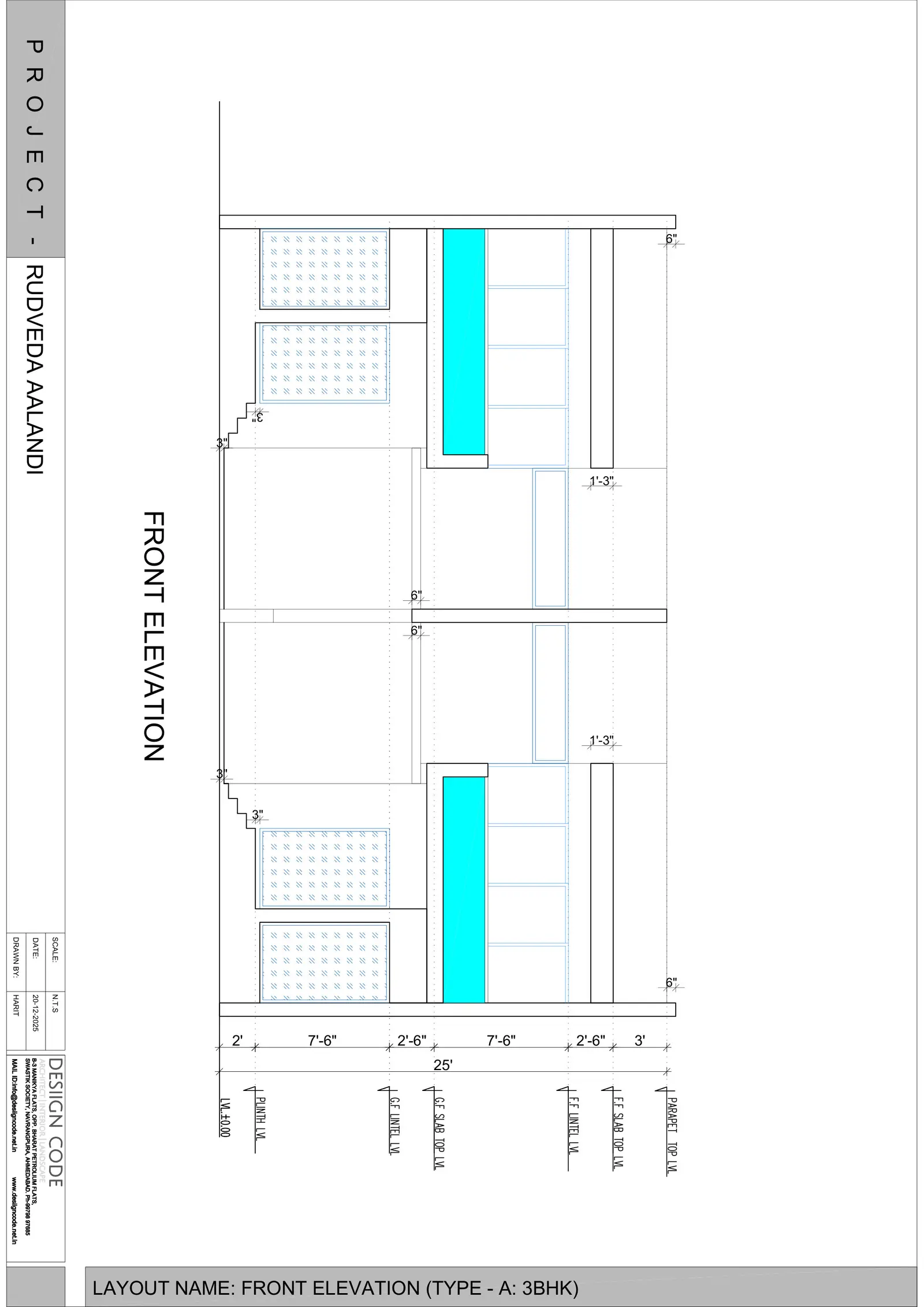

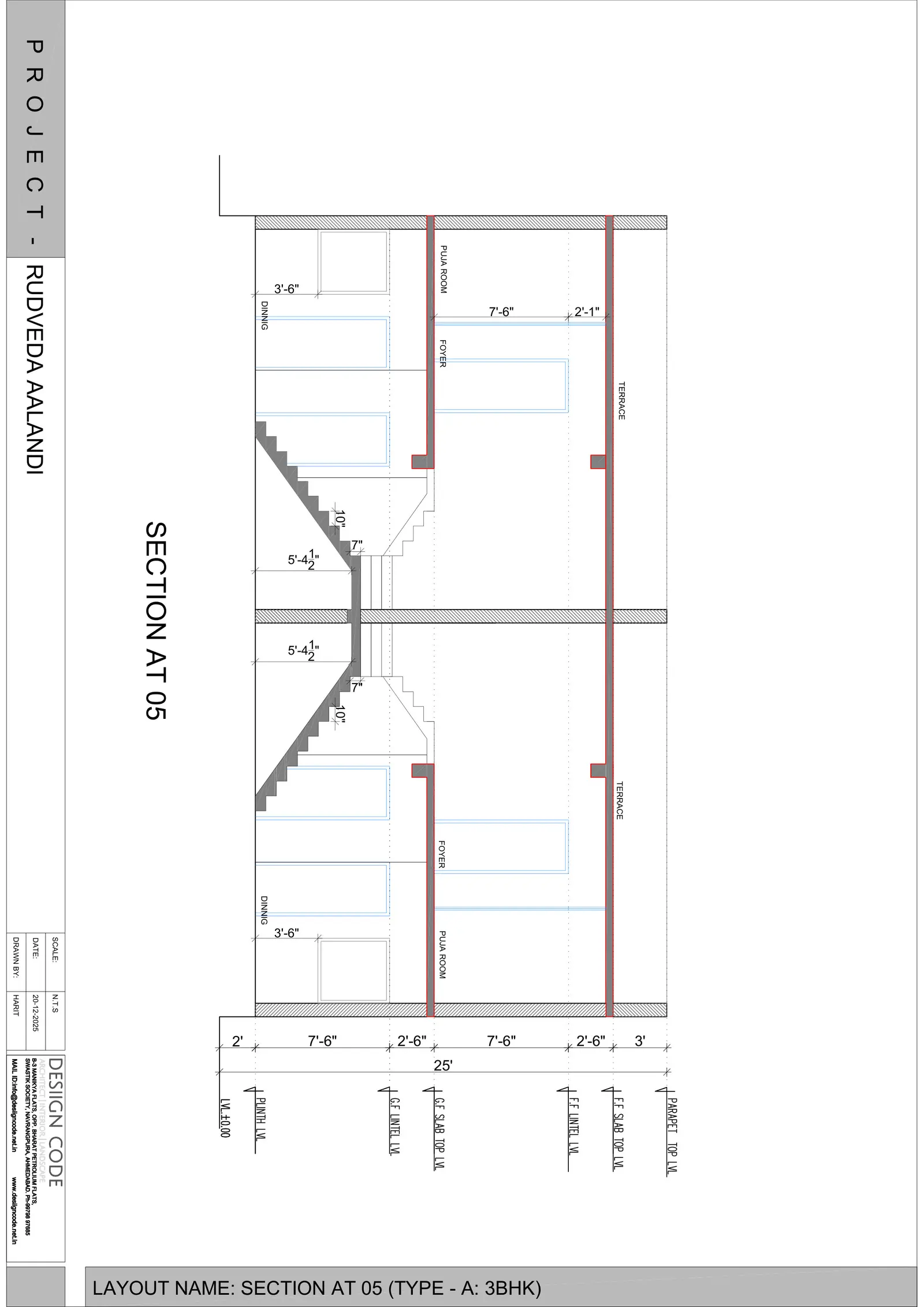

Front and back elevations and five sections through the pair of houses, including the stair.

Front elevation · Type A
Services

Toilet details for every floor: tile layouts, wall elevations, and plumbing and electrical points.

Toilet details — plumbing and electrical
Site details

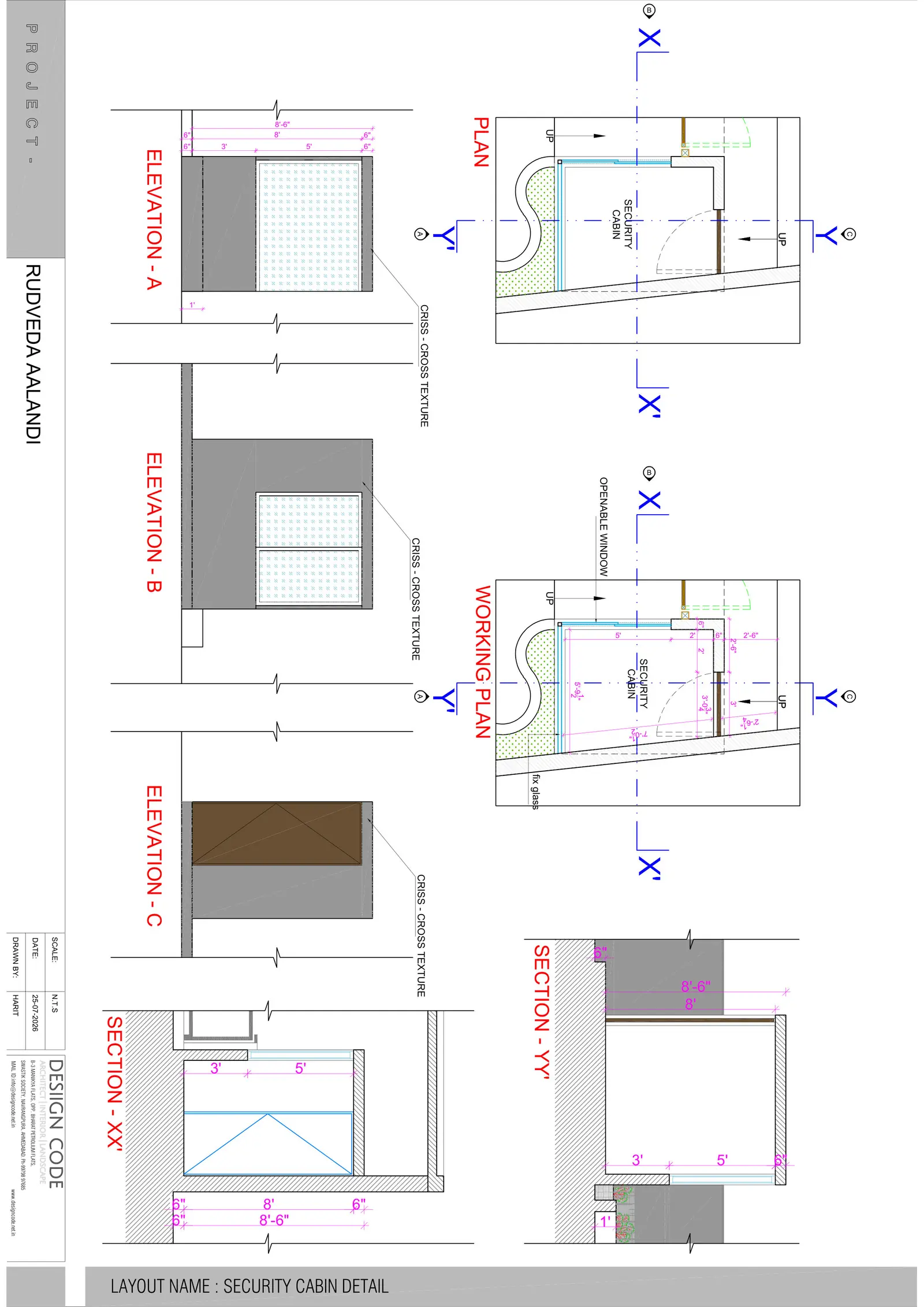

The front gate, its planters and MS gate, and the security cabin — plans, elevations and sections.

Front gate details
